StarUML 2.0.2 Release
StarUML 2.0.2 enhances sequence and activity diagrams with new features.
StarUML v2.0.2 is now available for download. This release includes the following features and fixed issues.
Sequence Diagram Enhancement
Sequence diagram is enhanced in many points. Now Lifelines are automatically aligned to the top of the diagram area and height of Lifeline is automatically expanded. All message kinds are added to the Toolbox, so you can create messages at once. Additionally, A create message is automatically attached to head box of Lifeline.

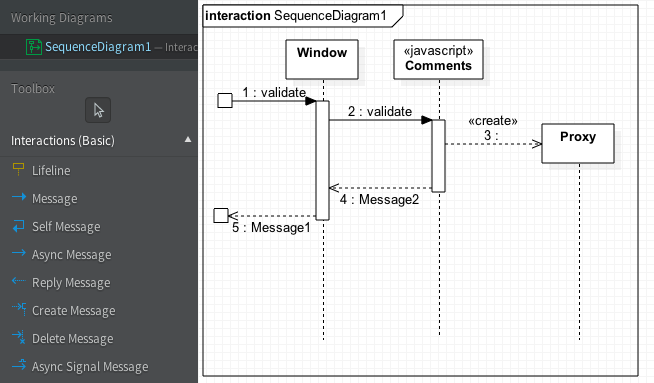

Sequence Diagram Enhancement
Activity Diagram Enhancement
Now Activity nodes can be contained in a Swimlane (Activity Partition), and allow to drag InputPins and OutputPins from Explorer and drop on Diagram.

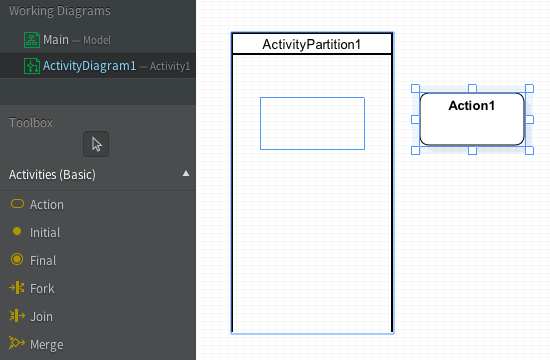

Swimlane contains Action
The detailed resolved issues can be found at changelog.
Written in by Minkyu Lee, PhD
